Dates Fruits Washing Grading
Processing Machinery
Dates Processing Machinery Advantages
The dates fruits washing grading processing machinery generally includes a spray bubble cleaning machine, a brush roller washing machine, an air drying machine, and a grading machine.
Dates Fruits Processing Process
Date palm cleaning and air-drying classifier is from raw date palm processing to date grading size processing. The related equipments are as follows: hoist—bubble cleaning machine–brush cleaning machine-air drying machine-hoisting machine-grading machine-small material truck loading finished products.
Hoist: It is used to lift the raw dates into the air separator, and the blower blows off the weeds and leaves, and the gravel, sand, and mud blocks with heavy specific gravity will automatically fall into the collection port below;

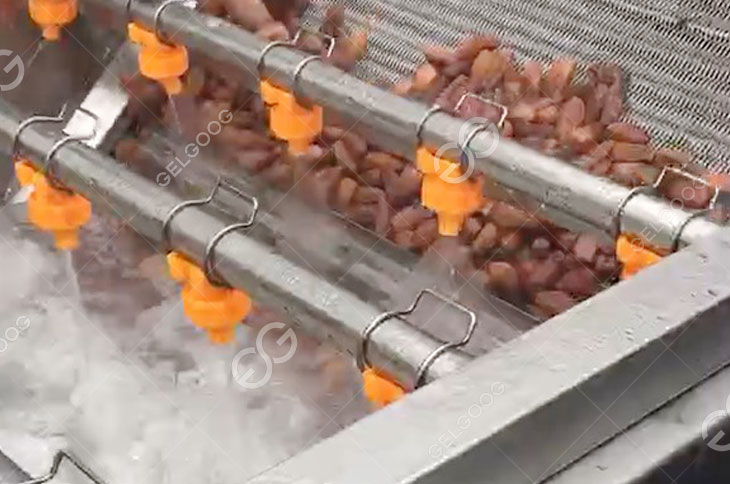

After the elevator enters the bubble cleaning machine, the bubble cleaning machine is equipped with a heating function. Heating and washing with warm water can quickly clean the sugar attached to the surface of the dates palm. The heating method can be electric heating, steam heating, and the heating temperature can be freely set (within 100 degrees) ;
High-pressure water spray cleaning matches bubble surfing and tumbling. This cleaning method imitates manual hand washing, and the cleaning is thoroughly clean. After cleaning, the floating material will overflow from the overflow tank, and the sediment, sediment and stones will sink to the bottom of the silo and be discharged from the sewage outlet. The bubble cleaning machine can also clean various fruits and vegetables such as raisins, jujubes, fresh dates, red dates, strawberries, apples, kiwis, etc.

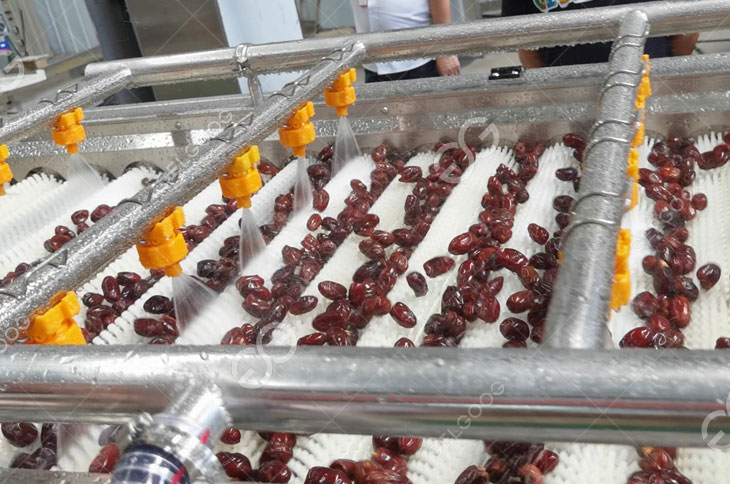

In order to prevent the surface folds of some dates from being cleaned, especially the folds of some dried dates are deep, and dust is mixed in the interior, a brush cleaning machine is used to configure the spray function, so that the use of a soft brush can effectively remove the deep folds. The dust is cleaned, the spray water can be recycled to save energy and water, and the high-pressure water spray can be cleaned;
The parallel brush cleaning machine is equipped with uneven nylon brushes, which can fully clean the dust and sand from the folds on the surface of the dates palm, and thoroughly clean the dates palm through the secondary spray of purified water. The washing machine can also wash potatoes, carrots, radishes, oysters and other products.
After cleaning, the water droplets on the surface of the date palm need to be dried with an air dryer. The air dryer is designed as a counter-blowing type.
After air-drying and draining, the clean dates palm enters the grading machine for grading and screening, and is graded according to the size of the date.

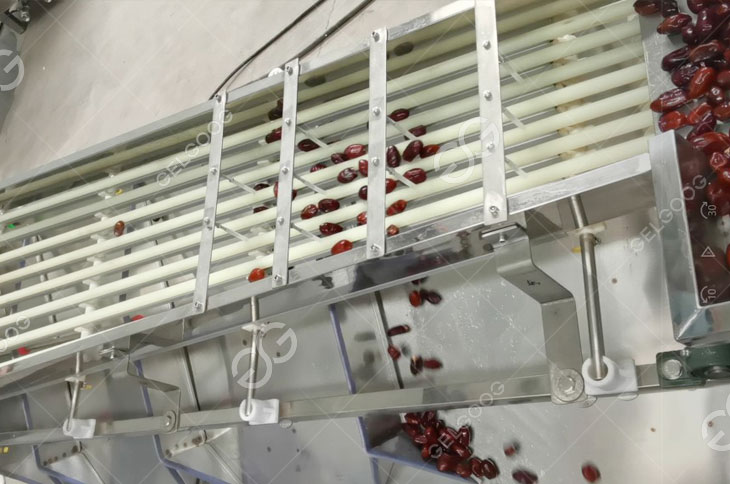

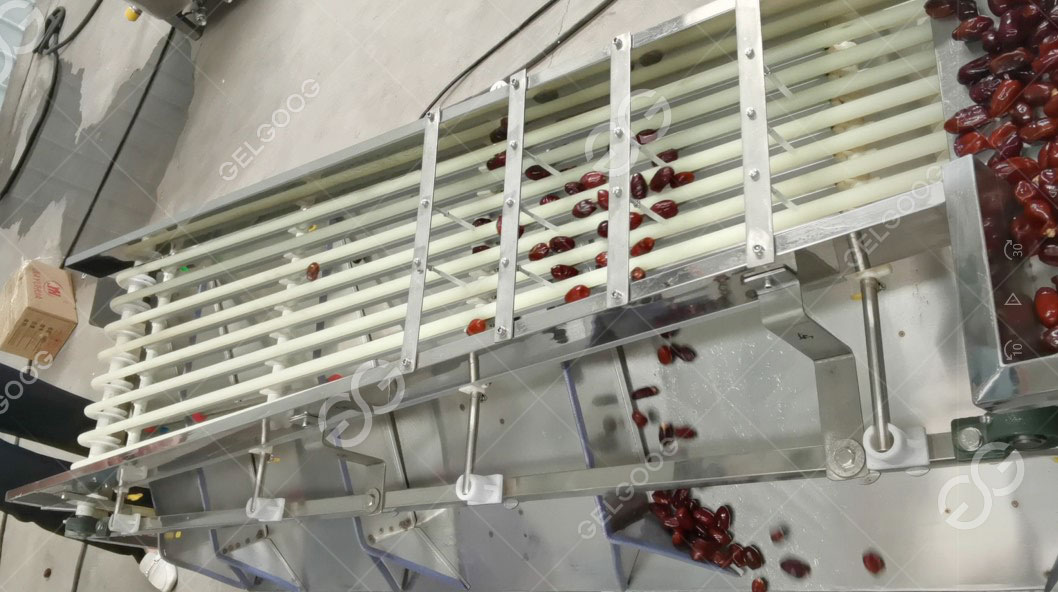

The date palm roller grading machine uses two stainless steel pipe conveyor belts running at a constant speed in the same direction to gradually open the distance during walking. The distance between the pipes gradually expands, and the classified products leak from small to large. The advantages are large output, no damage to products, adjustable grades, which can be divided into 3-8 grades, high classification accuracy, simple and fast adjustment methods, and can be operated by ordinary personnel. There are various types of graded products, which can be divided into dates palm, jujube, strawberry, hawthorn, walnut, small tomato, peach, apple, pear, onion and so on.
Still Confused About Dates Fruits Processing? Get A Consultation
We support customize dates fruits washing drying grading processing line according to your specific request!
