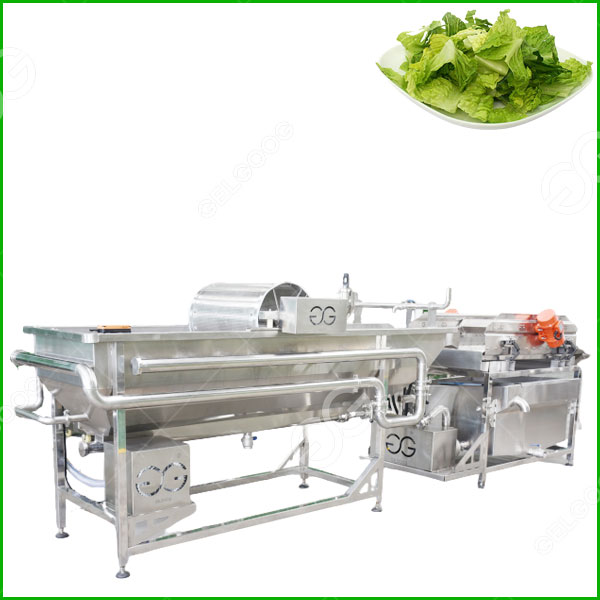

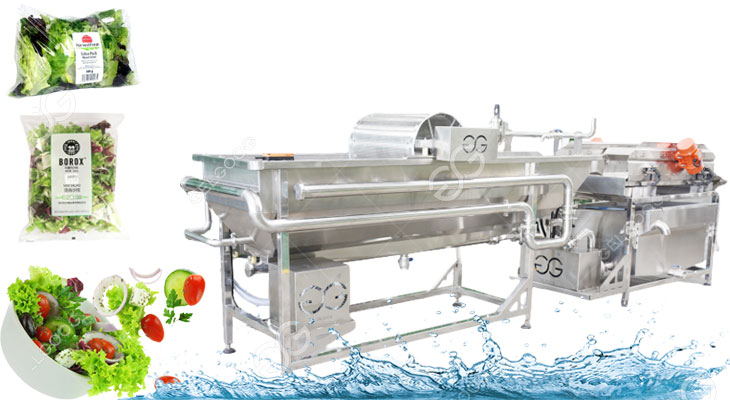

Industrial Salad Vegetables Washing Drying Processing Machine

Description

Salad washing machine is mainly used for cleaning and vibrating and draining(drying) cutted vegetables. This salad washing machine is especially suitable for fruits and vegetables after shredding, dicing and dicing. This salad processing machine makes the cleaned salad not easy to stick on the mesh belt, and it is suitable for use in major fruit and vegetable salad processing plants, central kitchens, supermarket cleaning vegetables, and vegetable distribution centers.

Salad Processing Machine Main Structure

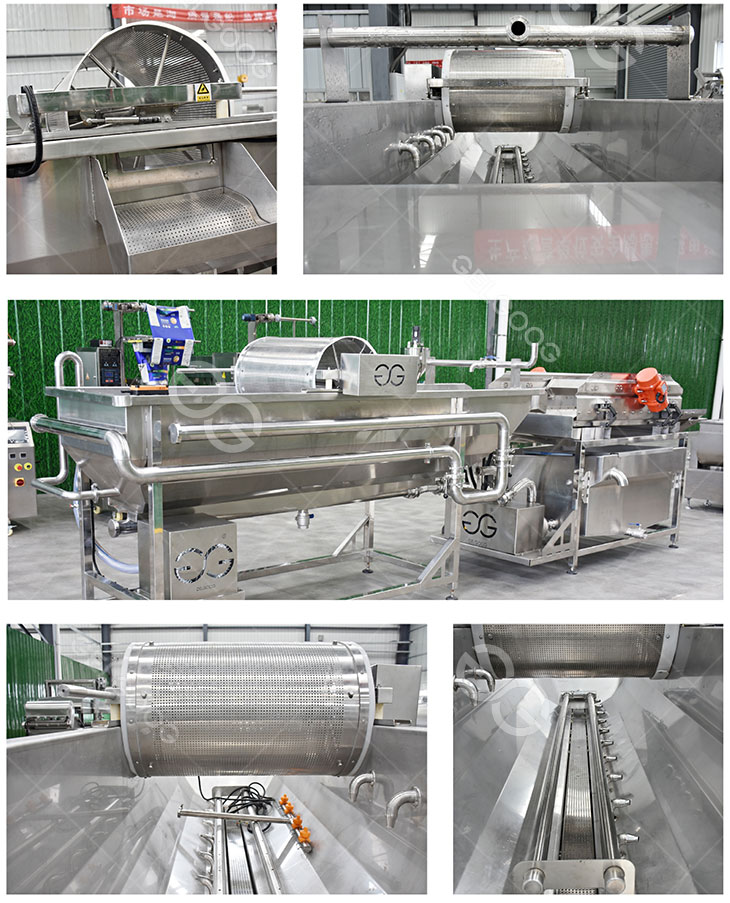

The salad processing machine consists of a frame, a cleaning tank, a water pump, a water storage tank, a vibration conveying mechanism, an electrical control system and a control switch.

Salad Washing Machine Function & Configuration

1. Material cleaning and impurity removal
2. Automatic water level control alarm system
3. Cage removal device
4. Adjustable multi-directional cross-flow cleaning jet device
5. In-line independent drainage system

Salad Washing Machine Parameter

1. Power: 4.8KW
2. Power supply: 50HZ, 380V
3. Dimensions: 4200*1150*1600mm
4. Production capacity: 1000-2000kg/h

Salad Washing Processing Machine Features

1. Swirl washing, 360 degrees 8 cycles of turning over for thorough cleaning;

2. Cyclone cleaning machine and vibrating water drainer are composed of cyclone tank made of stainless steel plate;

3. The secondary precipitation filter water circulation system saves energy and avoids excessive waste of water resources;

4. It adopts a straight-type independent drainage system, and there is no complicated pipeline laying to avoid sludge retention pipelines;

5. High-frequency vibration conveying adopts high-frequency micro-vibration motor and high-frequency flexible spring imported from Sweden;

6. The high cylinder body is designed to be off the ground, which is convenient for cleaning and maintenance, and there is no dead corner to hide dirt;

7. Punching, corrugated bending screen body, graded transmission, removal of vegetable salad attachments, fine filtering of hair, insects, vegetable scraps, and water purification;

8. The overall drop type echelon double-cylinder design, without skeleton, adopts the three-dimensional seamless bending technology of high-strength SUS304 stainless steel plate;

9. It is used for cleaning, removing impurities and draining water for leafy vegetable salad, and thoroughly removes light or small heavy impurities such as sediment, dust, and pebbles in leafy vegetables;

10. The vegetable salad is conveyed by vibration and drained, and the water flows through the orifice of the vibrating screen and flows into the bottom water tank to complete the circulation of the entire water circuit;

11. The swirl buffer is used to deliver vegetables without chain or belt transmission, which ensures that the vegetable salad can be effectively cleaned for a longer time, and the cleaning space is larger, and at the same time, there is no dead angle for hygiene;

12. The inlet and sides of the tank are equipped with spray pipes, which are supplied by high-pressure water pumps. The water in the tank is in a swirling state under the action of the spray pipes under the action of spray water. The vegetable salad is rotated and pushed forward by the action of water flow to complete the cleaning;

If you want to set a salad processing plants, we can also support you salad cutting machine, before salad washing processing, and after drainage the cleaned salad, we can also support you the salad packaging machinery according to your specific request! Except we can also support you a customize salad processing plants according to your specific request and provide you with the layout drawings of the salad processing plant in the early stage for free!If you have any request of the salad processing ,welcome to contact us freely!!
