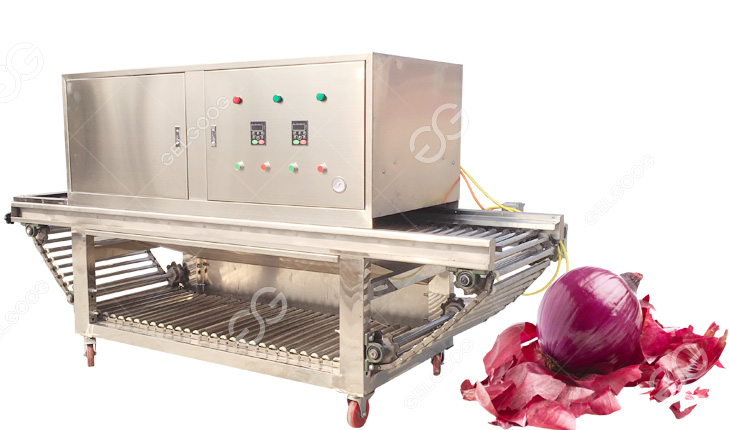

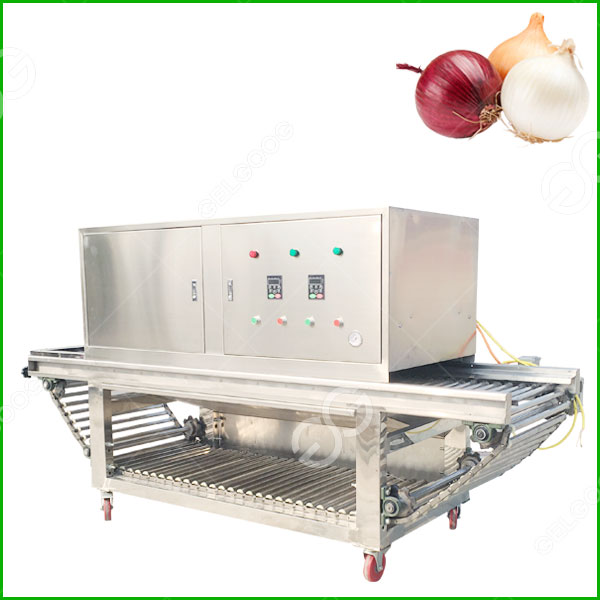

Commercial Automatic Onions Peeling Machine

Description

The onion peeling machine is powered by compressed air and adopts a chain-type conveying bin-type peeling structure. The onion enters the peeling bin through the chain drive. When the onion passes through the peeling bin, the onion skin is separated by the air compressed air flow, and the onion travels uninterruptedly. During the peeling process, the shallots are peeled without the effect of hardness friction, the integrity and freshness of the onions are preserved, and at the same time, it saves electricity and energy, and is easy to clean.

Commercial Onion Peeling Machine Advantages

1. Chain conveying
Stainless steel chain rolling conveying materials;

2. Simple operation
Automatic operation panel, easy to learn;

3. The finished product has good effect
Peel the skin cleanly without hurting the onion;

4. Suitable for a variety of onions
Suitable for yellow, white and purple skin onions, one machine can be used for multiple purposes;

Here is our onion peeling machine youtube video testing in our factory for your reference!!

Onion Peeler Parameter

Production capacity: 2-10t/h

Equipped with power: 6Kw

Grading level: Level 5

Dimensions: 5500*1000*1700mm

Automatic Onion Peeling Machine Features

Fully automatic digital control, the peeled onions are smooth without any damage and pollution.

The onion peeling machine is equipped with an automatic feeding device, and the onion and onion skin are automatically separated.

It has the characteristics of practicality, power saving, high production efficiency, easy maintenance and cleaning, and low failure rate.

The onion peeling machine adopts the pneumatic principle, and the peeling process does not go through the action of blade and hardness friction, so as to ensure the peeled onion skin.

The onion peeling machine is made of stainless steel, which is non-rust and non-rot, non-toxic and harmless for long-term work, and meets the requirements of food processing machinery hygiene standards.

Onion peeling machine operation process

1. Before starting the machine, adjust the air pressure of the air compressor to 0.8mpa, and check whether there is any debris on the air offline chain conveyor belt;
2. After the power is turned on, press the “drive start” button to see if the running direction of the chain conveyor belt is consistent with the direction marked on the machine;
3. Before starting the new equipment, it is necessary to re-firm the screws of all parts;
4. Start the chain drive button of the chain peeling machine;
5. After the chain runs normally, open the ventilation valve and put the onion into the hopper;
