Description

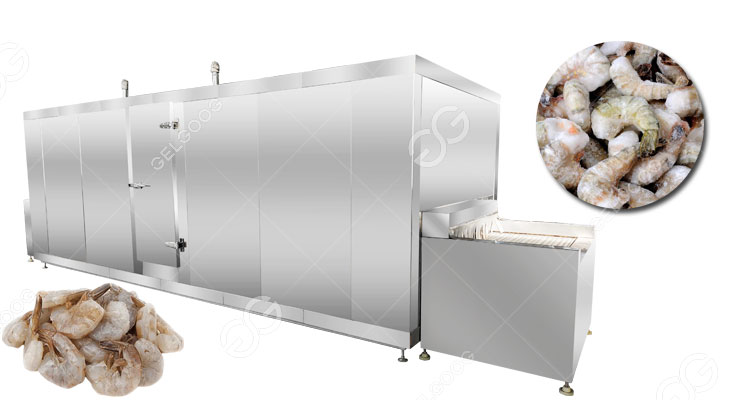

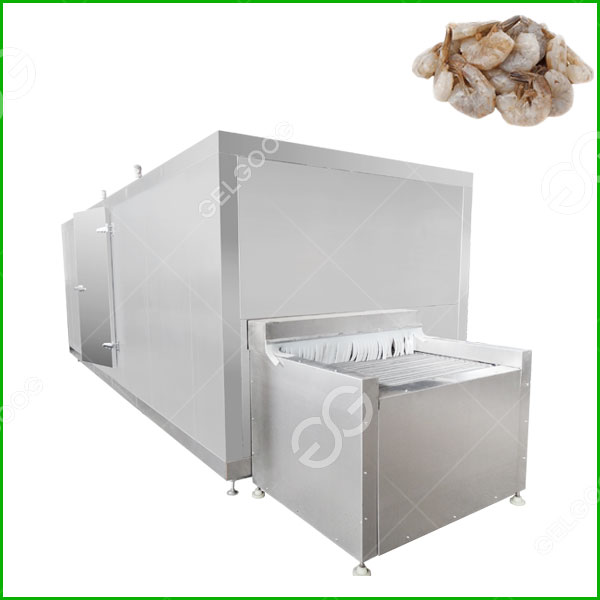

The IQF shrimp freezer is a quick-freezing and freezing equipment that freezes a large number of fresh shrimps after proper pretreatment and freezes a large number of shrimps below minus 25 degrees in a short period of time. Freeze the center temperature of the quick-frozen shrimp to -18 degrees, so that the nutrients will not be lost, and the appearance will not change color and crystal clear. The original quality of shrimp is maintained at low temperature, which is healthy, hygienic and delicious.
Shrimp IQF Freezer Advantages
1. Quick-frozen original color and original flavor
The characteristics of rapid freezing of shrimp quick-freezing machine are to maintain the original nutritional value of shrimp meat to the maximum extent, maintain the original color of shrimp meat, maintain the original flavor of shrimp meat, and maintain the original quality of shrimp meat.
2. Microorganisms
Rapid freezing forms fine ice crystals in the tissue structure of shrimp meat, the cytoplasm of microorganisms increases at low temperature, and the electrolyte concentration is high, which has suffocation and inhibitory effects on bacteria and microorganisms.
3. Frozen quality is high quality
The main factor affecting the freezing quality of poultry food is the size of the ice crystals formed in its cells. Its color, aroma and taste are directly related to the amount of damage to the cells in the poultry during the freezing process. The shrimp quick-freezer has a short freezing time and has quick-freezing properties. , the ice crystals formed by it are very small, so it can maintain the original freshness, color, aroma and nutritional value of shrimp meat.
IQF Shrimp Freezer Parameter
| Models | IQF-100 | IQF-300 | IQF-500 | IQF-1000 |
| Capacity（kg/h） | 100 | 300 | 500 | 1000 |
| Refrigeration capacity（kw） | 20 | 54 | 90 | 180 |
| Size | 5500x3400x2900 | 6000x4000x3700 | 8000x4000x3700 | 10500x4200x3500 |
| L×W×H（MM） | ||||
| Installed power（kw） | 14 | 18 | 24 | 35 |
| Feed temperature（℃） | +15℃ | |||
| Discharge temperature（℃） | -18℃ | |||
| Circulating temeprature（℃） | -35±2℃ | |||
| Freezing time(min) | 8~20 | |||
| Refrigerants | Customized |
Shrimp Freezing Machine Features
High freezing efficiency
Large capacity, low power consumption, strong corrosion resistance, good thermal conductivity, high freezing efficiency and short time;
Long lasting
Adopt mesh belt chain transmission mechanism, low mechanical failure rate, high-strength chain sprocket, avoid chain deformation and breakage;
Short freezing time
The overall flat plate heat transfer area is large, supplemented by forced air cooling by fans, high heat transfer efficiency, short freezing time and fast freezing speed;
Reliable performance
The flat plate machine adopts the flat plate evaporator treated by special process, which has high smoothness and good thermal conductivity, and is easy to operate;
