Description
The iqf green bean tunnel freezer uses mechanical vibration and wind pressure to make the green beans float on the stainless steel mesh belt, so as to realize the rapid freezing of each green bean and prevent sticking. The mechanical vibrating device is used to further improve the fluidization capacity, and the conveying mesh belt is controlled. According to the variety and thickness of the material, the sieving frequency of the conveying belt is adjusted during the forward conveying process.

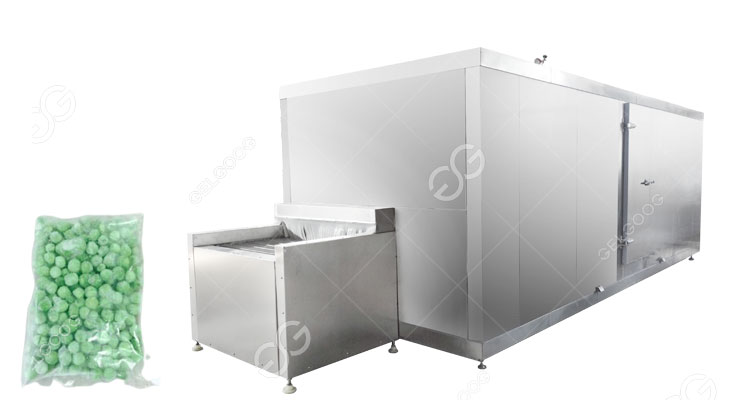

![iqf green beans tunnel freezer](https://www.vegetablemachines.com/wp-content/uploads/2023/03/iqf-green-beans-tunnel-freezer.jpg)
Applications:green beans, taro, mushrooms, lotus root slices, asparagus, green peppers, green beans, broad beans, cauliflower, corn, chestnuts, peas, strawberries, blueberries, yellow peaches, mangoes, sea-buckthorns Quick freezing of vegetables, fruits and other granular, flake and block foods.
![IQF Frozen products](https://www.vegetablemachines.com/wp-content/uploads/2023/03/IQF-Frozen-products.jpg)
Green Bean Quick Freezer Advantages
1. The freezing efficiency is high, and there are many types of frozen products;
2. The frosting interval is long to ensure the continuity of production;
3. Adopt mechanical air cooling device, low energy consumption, and realize rapid freezing at a temperature of -32 degrees;
IQF Tunnel Freezer Parameter
Models | IQF-100 | IQF-300 | IQF-500 | IQF-1000 |
Capacity(kg/h) | 100 | 300 | 500 | 1000 |
Refrigeration capacity(kw) | 20 | 54 | 90 | 180 |
Size | 5500x3400x2900 | 6000x4000x3700 | 8000x4000x3700 | 10500x4200x3500 |
L×W×H(MM) | ||||
Installed power(kw) | 14 | 18 | 24 | 35 |
Feed temperature(℃) | +15℃ | |||
Discharge temperature(℃) | -18℃ | |||
Circulating temeprature(℃) | -35±2℃ | |||
Freezing time(min) | 8~20 | |||
Refrigerants | Customized |

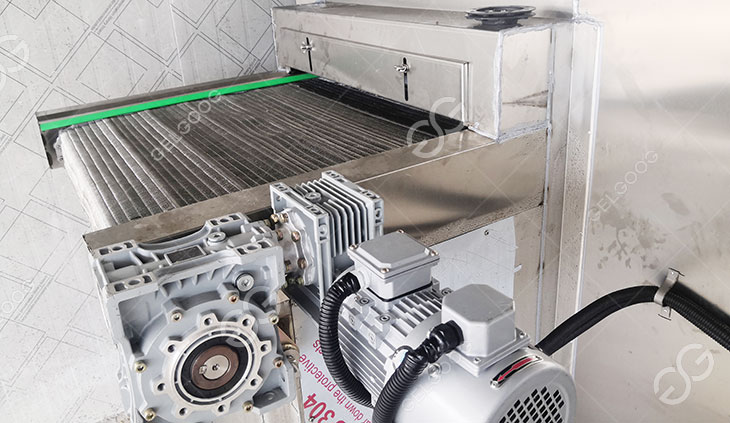

![IQF freezer factory pic](https://www.vegetablemachines.com/wp-content/uploads/2023/03/IQF-Freezer-facotry-pic.jpg)
IQF Freezer Features
1. The fluidized bed is a mesh belt that circulates and runs smoothly. The green beans are not deformed and broken to the greatest extent during the freezing process. The running speed of the mesh belt is stepless variable, and the range of speed regulation is wide. The user can change the running speed of the mesh belt according to the different materials, so as to change the freezing time. This series of quick-freezing machines can freeze a variety of vegetables and fruits, and can also use perforated plates to quick-freeze seafood and pasta. In addition, there is a tunnel in the quick-freezing room, which can accommodate the rack trucks and is used to freeze the frozen products on the plate, which is very versatile.
2. This series of quick-freezing devices form a vertically upward strong cold air flow with a large flow rate, and adopt a different wind device to distribute the air reasonably and distribute the air flow evenly. Make the green beans fully exposed to the strong cold wind. The lower part of the mesh belt is equipped with an independent pulse vibration device, so that the gaps of the mesh belt will not be blocked by frost, reducing wind resistance and smooth airflow. And make the green beans not agglomerate, not stick to the net and form a monomer. The fully fluidized monomer quick-freezing process has been realized, and the quick-freezing speed is fast, which greatly improves the frozen output.
