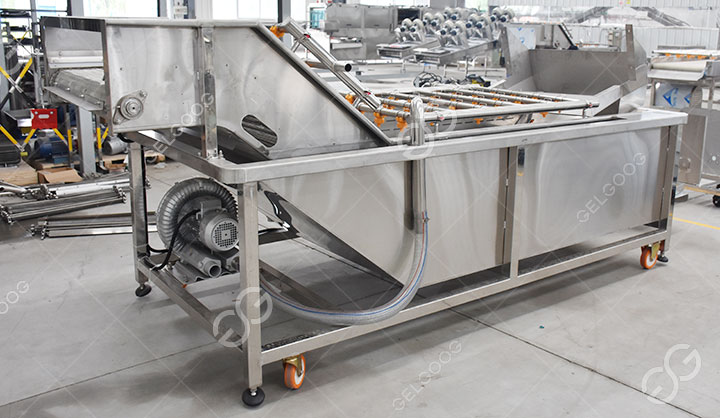

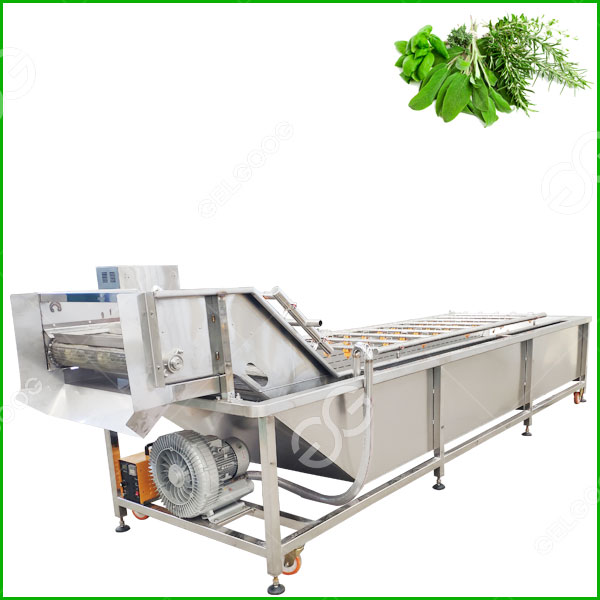

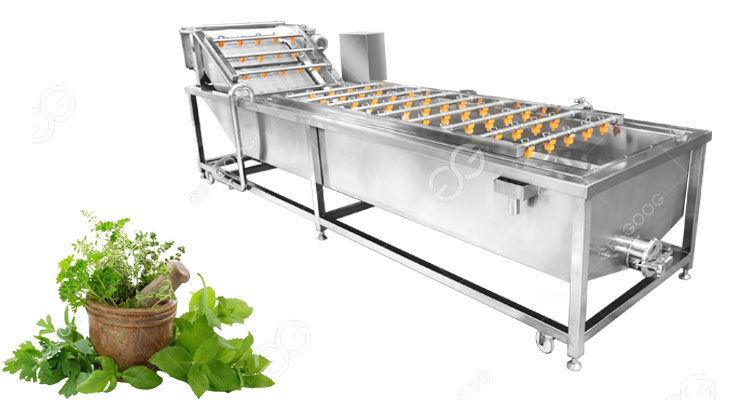

Stainless Steel Herb Leaves Washing Machine

Description

The herb washing machine with a bubble generating device, it can makes the herb leaves in a tumbling state, and has the effect of removing dust and pesticide residues on the surface of the herb leaves. It can be equipped with an ozone generator to sterilize the herb leaves. The floating matter can overflow from the overflow tank, and the sediment is discharged from the sewage outlet to achieve the purpose of cleaning. Under the joint work of air bubbles, surfing, lifting, and spraying, the herb washing machine has the features of high cleanliness, energy saving, water saving, stable and reliable equipment, and it can maintain the original color of herb leaves.

Herb Cleaning Machine Structure:

The herb cleaning machine is composed of tank body, inner tank body, sediment isolation net, lifting device, air bubble generating device and other components.

Herb Leaves Washing Machine Working Principle

The high-pressure cyclone pump makes the water roll and “boil”, so that the dust and sediment on the surface of the herbs are quickly separated from the main body, and the cleaned herbs are transported to the next process through the stainless steel mesh belt. Multiple fan-shaped nozzles are used for secondary cleaning of herbs to achieve a good cleaning effect.

Here is the herb washing machine youtube video testing in our factory for your reference!!

Herb Washing Machine Features

1. The herb washing machine material is stainless steel
Except for the motor and electrical parts, the whole machine is made of stainless steel, which meets the requirements of food hygiene and is easy to clean;
2. Full automatic delivery
During the cleaning process, the conveyor belt transports herbs, replaces labor, and improves work efficiency;
3. Improve the secondary spray cleaning
The herbal medicine is lifted through the conveyor belt to lift the tank body, and then sprayed and cleaned again to ensure the cleaning effect;
4. Bubble Surf Cleanse
Herbs into the water, use the churning water to stir the herbs to clean, remove stains and improve the effect;

Herb Washing Machine Advantages

Use bubble rolling, brushing and spraying techniques to clean the herbs;
The frame is made of high-quality SUS304 stainless steel, it meets the national food industry standards;
The cleaning operation speed is steplessly adjustable, and the user can set it arbitrarily according to different cleaning contents;
The herb washing machine has a compact structure and a high degree of automation, and is suitable for enterprises of various processing scales;

Herbal Cleaning Machine Operating Steps:

(1) Clean the water tank, fill it up with water, and pour clean water into the main tank until water overflows from the overflow port.
(2) Start the conveying mesh belt motor to make the mesh belt run normally and in the correct direction.
(3) Start the vortex pump, inject air into the water in the water tank, and make the water in the tank churn.
(4) Open the valve of the spray pipe to let the water evenly spray on the mesh belt.
(5) Check each operating part, and it can work after confirming normal operation.
Note: models and specifications can be customized
