Description

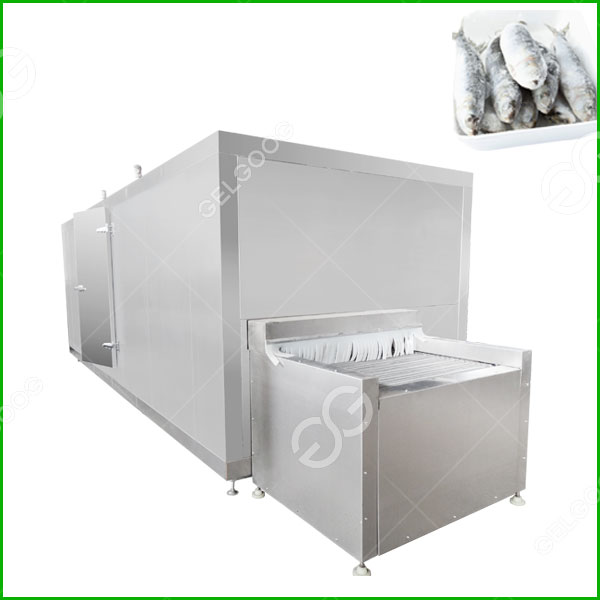

Fish quick-freezing machine is a high-efficiency, energy-saving, multi-purpose quick-freezing equipment, suitable for quick-freezing various aquatic products (shrimp, fish fillet, squid, scallop). The mesh belt can be ventilated up and down, and the freezing speed is fast, so that the nutrients are not lost, the appearance is unchanged, and the color is crystal clear. Quick-frozen fish completely maintain the original quality of live fish at low temperature without any preservatives or additives, so quick-frozen fish is delicious, fresh, convenient, fast, healthy and hygienic.
Fish IQF Freezer Advantages
1. Simple structure and convenient operation. Adopt heat wave blowing method, high freezing efficiency;
2. It is made of high-quality equipment and stainless steel spring wire, and the width of the mesh belt can be selected according to requirements;
3. The imported inverter realizes stepless speed regulation, and the freezing time of frozen products can be continuously adjusted according to needs;
4. The tunnel-type quick-freezing machine can choose a combination of single and double mesh belts according to the output requirements, which is cost-effective;
IQF Freezer Parameter
| Models | YSD-500 | YSD-1000 | YSD-2000 |
| Capacity（kg/h） | 500 | 1000 | 2000 |
| Height of inlet and outlet | Inlet 1055mm/Outlet 835mm | ||
| Max Height | 2500mm | ||
| Sizes | 8000×2230×2500mm | 14000×2230×2500mm | 17000×2230×2500mm |
| Belt Width | 1280mm | 1280mm | 1280mm |
| Freezing Time | 5-25min（Adjustable） | ||
| Power(KW) | 18 | 31 | 41 |
IQF Fish Freezer Features
1. Use water to flush the cream to ensure cleanliness.
2. Simple structure, convenient operation and long service life.
3. Using stainless steel mesh belt, the surface is flat and easy to clean.
4. The inverter control realizes stepless speed regulation, and the freezing time of frozen products can be adjusted, which can be applied to the processing of various frozen products.
5. The warehouse board adopts double-sided stainless steel polyurethane sandwich insulation board, which has good thermal insulation performance. The internal parts are made of SUS304 high-quality stainless steel material, which is easy to clean and meets HACCP requirements.
